Emerson Epro CON021+PR6423/010-040-CN Eddy Current Sensor System

Descripción

Description

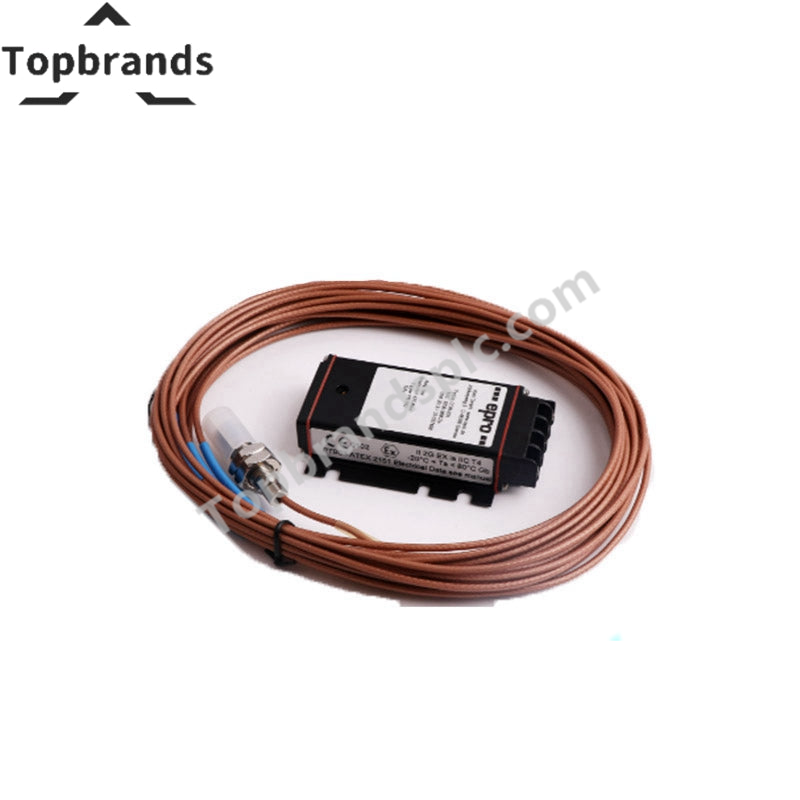

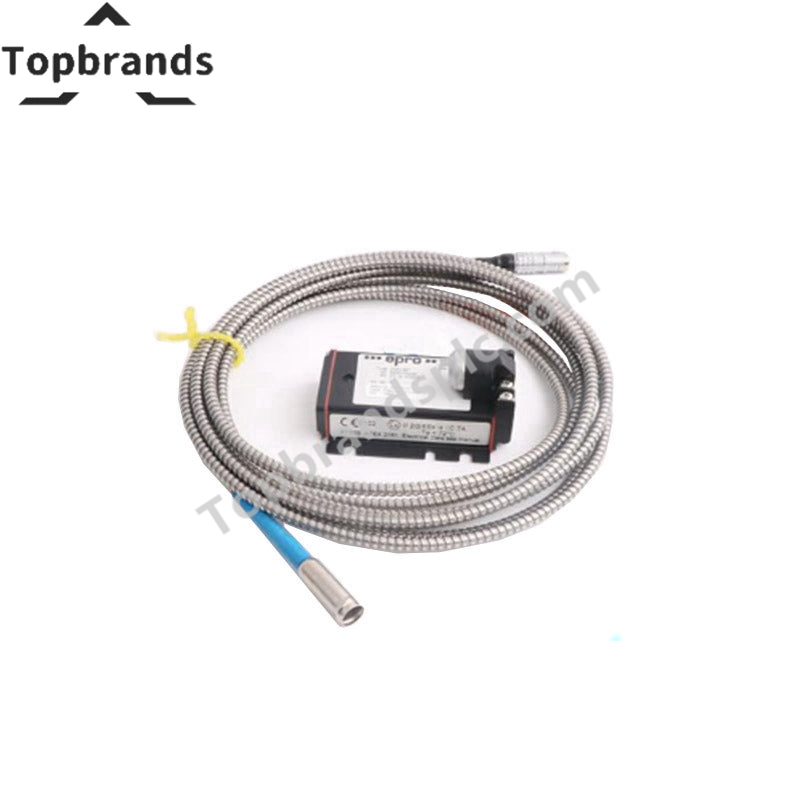

This  CON021+PR6423/010-040-CN system consists of the CON021 signal converter and the PR6423 eddy current displacement transducer, ensuring high-accuracy monitoring of rotating machinery. It is engineered for harsh industrial environments, offering intrinsically safe operation with ATEX, IECEx, and CSA certifications.

Specifications

• Linear Measurement Range: 2 mm (80 mils)

• Initial Air Gap: 0.5 mm (20 mils)

• Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% (0 to 45°C)

• Deviation from Best-Fit Straight Line (DSL): ± 0.025 mm (± 1 mil)

• Minimum Shaft Diameter: 25 mm (0.79”)

• Target Material: Ferromagnetic Steel (42CrMo4)

• Protection Class: IP66

• Operating Temperature:

  • Sensor: -35°C to +180°C (-31°F to 356°F)

  • Cable & Connector: -35°C to +150°C (-31°F to 302°F)

• Material Composition:

  • Sensor Tip: PEEK (Polyether Ether Ketone)

  • Case: Stainless Steel

  • Cable: PTFE (Polytetrafluoroethylene)

  • Connector: Brass, nickel-plated

• Weight: Sensor (with 1m Cable): ~100 grams (3.53 oz)

Features

• Non-Contact Measurement: Ensures precise monitoring of shaft displacement and vibration.

• High Accuracy: ± 0.025 mm deviation from best-fit straight line.

• Wide Temperature Range: Operates effectively in extreme conditions.

• Robust Construction: Stainless steel housing with IP66 protection.

• Certified for Hazardous Areas: ATEX, IECEx, and CSA approvals for intrinsic safety
